LM-SP16-4K2K |
|

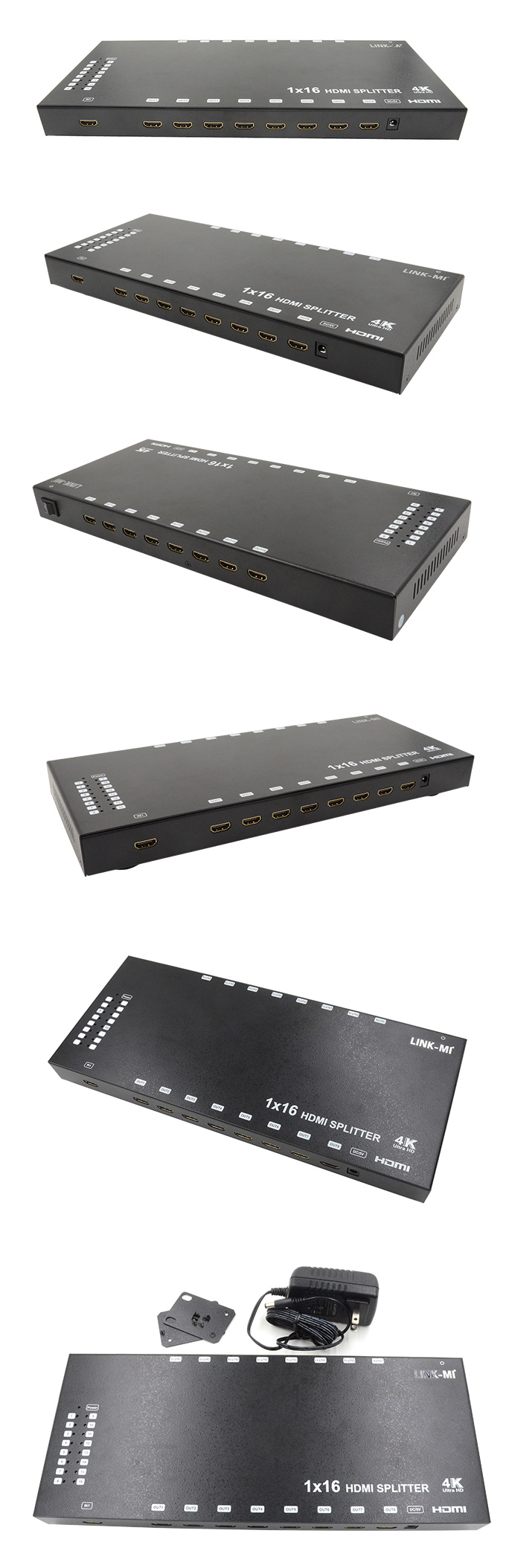

| LINK-MI LM-SP16-4K2K 1x16 HDMI Splitter Support 4K 3D |
| |
Introduction:
1.Distributes 1 HDMI source to 16 HDMI Displays simultaneously.2.Supports all the mandatory and several optional 3D formats3.Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD4.Supports High Definition Resolutions: 1080p @ 60HZ, 720p/1080i @ 120Hz.5.Supports Digital Audio Format, such as High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio.6.DC 5V Power. |
|
|
| |
|
|
|

Specification
|
Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Data transfer speed rate |
9.0Gbps(Maximum) |
|
Video Format Supported |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support |
|
Video Output |
HDMI |
|
Video Color Format |
xv-YCC/deep color 36bit |
|
Support Audio Format |
DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD |
|
Power consumption |
15watts(Maximum) |
|
Dimension (L×W×H) |
350x147x40mm |
|
Net Weight |
1450g |
Packing Contents
1) Main Unit. 1x16 HDMI splitter
2) 5VDC Power Supply.
3) Operating Instructions
|
 |
|
|
|
|
